Getting Started: TIAGo

Unboxing TIAGo

This section explains how to unbox TIAGo safely. TIAGo is shipped with the flightcase shown in figure:

_images/box.png

Figure: TIAGo flightcase


The flightcase MUST be always transported vertically to ensure the robot’s safety. In order to move the flightcase, pull the handle on the back, as shown in figure below. To place the flightcase in a given location use one of your feet to help you carefully set the flightcase in an upright position.

_images/move_flightcase.png

Figure: Moving the fligthcase


Open the door of the crate, see figure below a and unfold the ramp as shown in figure below b. Remove the foam wedges holding the mobile base as shown in figure below c. Finally, pull out TIAGo from the upper part of its torso back and, if necessary, from the bottom part of the shoulder, as shown in figure below d. Do not pull out the the robot from any part of the mobile base cover as damaged could be caused to you or to the robot.

_images/unboxing_procedure.png

Figure: Unboxing procedure

Turn TIAGo on properly

Power up the robot

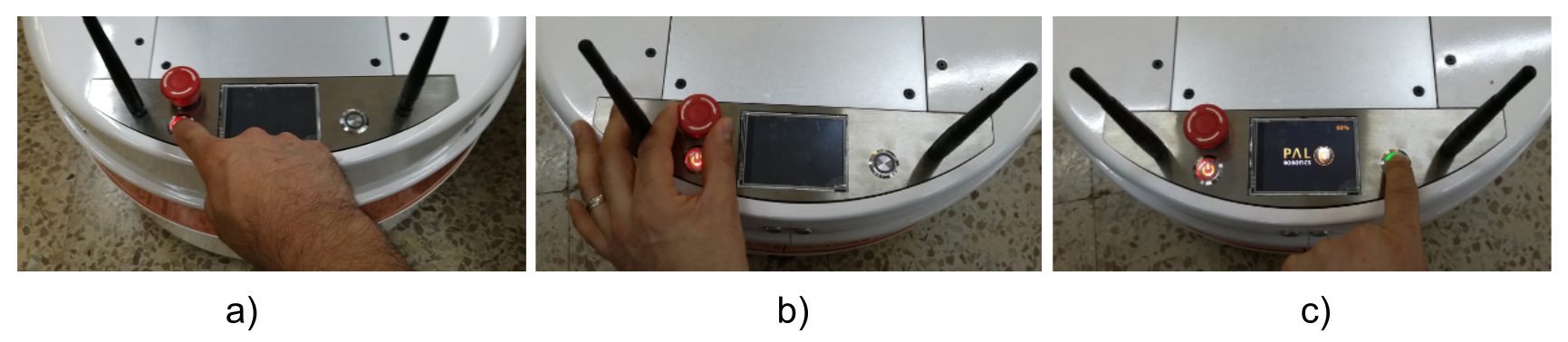

In order to power on TIAGo do as follows:

  • First of all press the electric switch if necessary in order that its red light indicator is ON, see figure a.

  • Make sure that the emergency button is released by turning it clockwise, see figure b.

  • Finally, press the On/Off button during 1 second until the display lights as shown in figure c.

_images/TIAGo_power_up.png

Figure: Start sequence


The robot will be ready when the leds around the mobile base come on.



Setting the arm to a safe pose

Warning

This Section presents important informatioincluden that must be taken into consideration when using the robot. Follow these instructions everytime the robot is used.

When the robot is started the arm will be lying on top of the mobile base. If the robot is turned on and left on that pose the heat from the arm motors may be transfered, after some time, to the paint of the robot’s lap cover which may end up melting it and causing aesthetical damage to these covers. In order to prevent this the procedure depicted in Figure: Procedure to set the arm in a safe pose and hereafter explained details a safe way to get the arm out of this initial pose, preventing self-collisions:

  1. In order to get the arm out of this position, either press the button Get out of collision in the Demos tab of the WebCommander, see section Quick diagnostics and testing with Webcommander for details, or run the following command line instruction:

export ROS_MASTER_URI=http://tiago-0c:11311
rosservice call /get_out_of_collision

  1. Raise the torso to its maximum height using the joystick

  2. Execute the Offer Gripper or (or Offer Hand in case of having the Hey5 hand mounted) movement using, for instance, the Movements tab of the WebCommander

  3. Exectute the Home motion in order to fold back the arm and the torso into a safe configuration where no contacts occur with the lap of the robot.

_images/Get_arm_out_of_initial_pose.png

Figure: Procedure to set the arm in a safe pose



Testing with the joystick

In order to to a quick verification that the robot is able to move some simple motions can be triggered with the provided joystick. First of all make sure that the robot has booted up by waiting until the leds around the mobile base are on. Then, the following buttons can be used to start testing some of the joints of the TIAGo.

  • Press the START button as shown in Figure: Give priority to the joystick (first figure) in order to give the priority to the joystick.

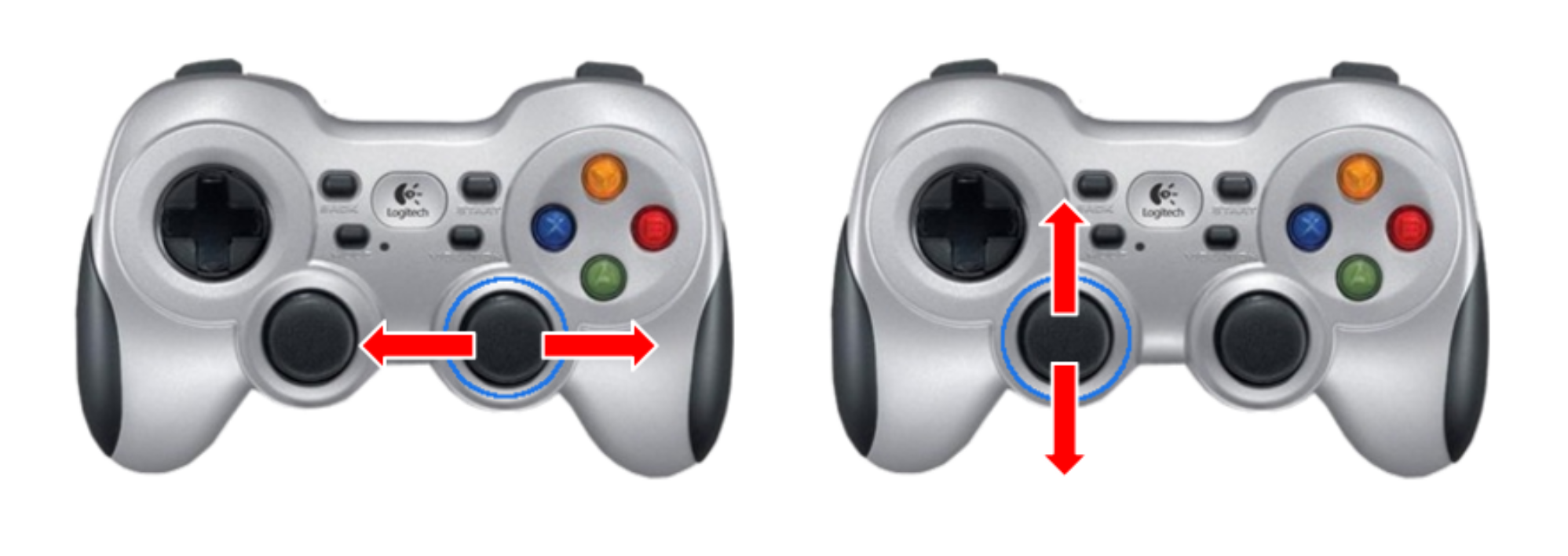

  • Use the joypads in order to make the mobile base move forward and backward, see Figure: Mobile base motions (second figure), and rotate leftwards and rightwards, see third figure.

  • Press the LB and LT buttons, see Figure: Torso lifter motions (fourth figure), to raise the torso and move it downwards.

  • Press the X, Y, A and B buttons, see figure Figure: Head motions (last figure), to move the head.

_images/joystick_F710_front_take_priority.png

Figure: Give priority to the joystick


_images/mobile-base-motions.png

Figure: Mobile base motions


_images/joystick_F710_torso_motion.png

Figure: Torso lifter motions


_images/joystick_F710_move_head.png

Figure: Head motions


Connect to the robot with Ethernet cable

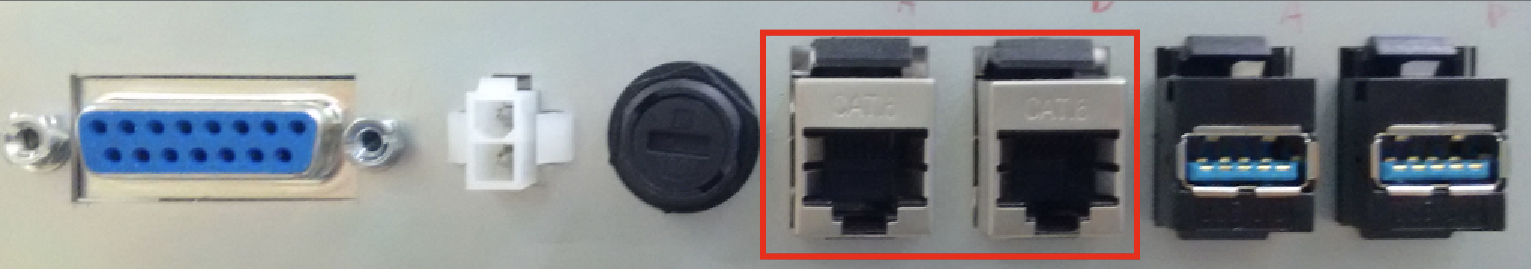

TIAGo has its own internal network accessible through two GigE ports in the user panel, see figure below.

_images/expansion__panel.png

Figure: Connecting to the robot’s network with Ubuntu


When connecting a computer using an Ethernet cable the DHCP server of the robot’s on-board computer assigns an IP in the range 10.68.0.25-255. The on-board computer has the IP 10.68.0.1 and its name is tiago-0c where 0 is the serial number without the “0s” on the left. The serial number can be found sticked on the rear part of the mobile base as shown in figure below. For sake of clarity and without loss of generality the name tiago-0c will be used hereafter in this documentation. The alias control is also defined for the on-board computer when using direct Ethernet connection.

_images/get_serial_number.png

Figure: Connecting to the robot’s network with Ubuntu

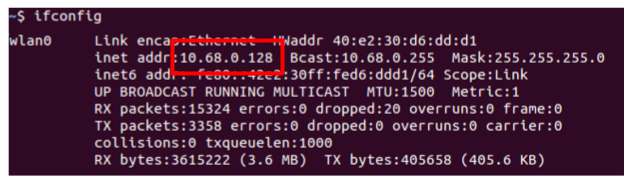

The robot must be able to resolve the hostname of the development computers connected to it. Use ifconfig in order to retrieve the IP that the computer has been given in the robot’s network as shown in Figure: Figure out the IP given to your computer. Note that the IP will be in the range 10.68.0.XXX.

In order to execute ifconfig in the robot’s on-board computer do as follows (the password of the pal user is pal):

ssh pal@tiago-0c
ifconfig
_images/wifi_computer_ip.png

Figure: Figure out the IP given to your computer


Connect to the robot using ssh as root (the password of the root user is palroot):

ssh root@tiago-0c

now execute the following command using the proper IP and the hostname of your computer:

addLocalDns -u hostname -i 10.68.0.128

Note that the addLocalDns needs to be executed everytime the robot is rebooted both because the change in the robot’s DNS is not persistent and because a different IP may be assigned to your computer by the DHCP of the robot.



Connect to the robot through Wi-Fi

TIAGo is delivered and configured as access point and therefore it is possible to connect to its on-board copmuter through a Wi-Fi network advertised by the robot. The credentials of the robot’s default Wi-Fi are shown in table below:

Access point default configuration

SSID

tiago-0

Channel

1

Mode key

WPA-PSK

Password

P@L-R0b0t1cs

Robot IP

10.68.0.1

Note that the number in the SSID, in the above example tiago-0, corresponds to the serial number of the robot as explained in the previous section. The address range 10.68.0.0-24 has been reserved. The on-board computer can be reached with the name tiago-0c and using the alias control.

The robot must be able to resolve the hostname of the development computers connected to it. Use ifconfig in order to retrieve the IP that the computer has been given in the robot’s network as shown in figure below. Note that the IP will be in the range 10.68.0.XXX.

_images/wifi_computer_ip.png

Figure: Figure out the IP given to your computer


Connect to the robot using ssh as root (remember that the password is palroot):

ssh root@tiago-0c

now execute the following command using the proper IP and the hostname of your computer:

addLocalDns -u hostname -i 10.68.0.128

Note that the addLocalDns needs to be executed everytime the robot is rebooted both because the change in the robot’s DNS is not persistent and because a different IP may be assigned to your computer by the DHCP of the robot.



Quick diagnostics and testing with Webcommander

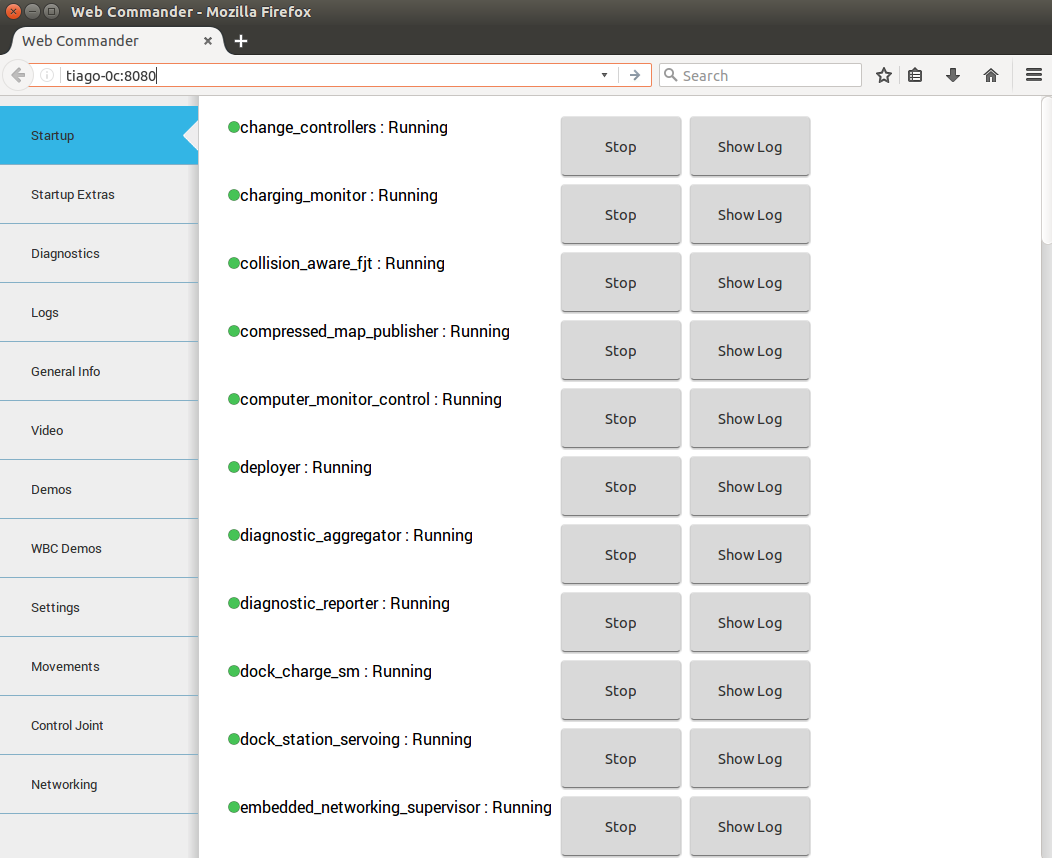

TIAGo has a HTML interface named Webcommander accessible via the http://tiago-0c:8080 URL, see figure below:

_images/getting_started_webcommander.png

Fig: Webcommander the HTML interface of TIAGo


This interface provides, among other information, the list of running nodes, graphical diagnostics of the different hardware and software functionalitites, network configuration menu, etc.

Programming TIAGo

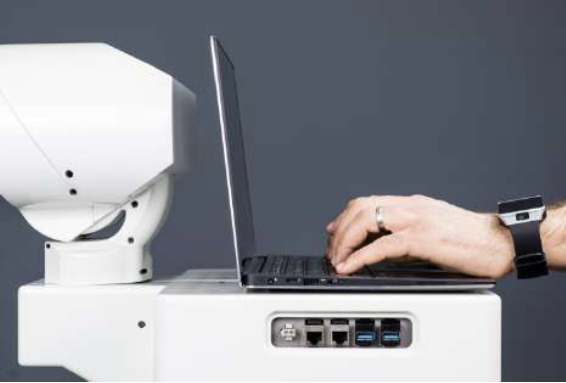

In order to start programming TIAGo it is necessary to install a development computer using the pen drive provided with the robot. Detailed instructions on how to install a development computer are provided in the handbook in Chapter Software recovery and Section Development computer installation.

_images/external_comp.png

Fig: An external computer is required for programming TIAGo


Shutting TIAGo down properly

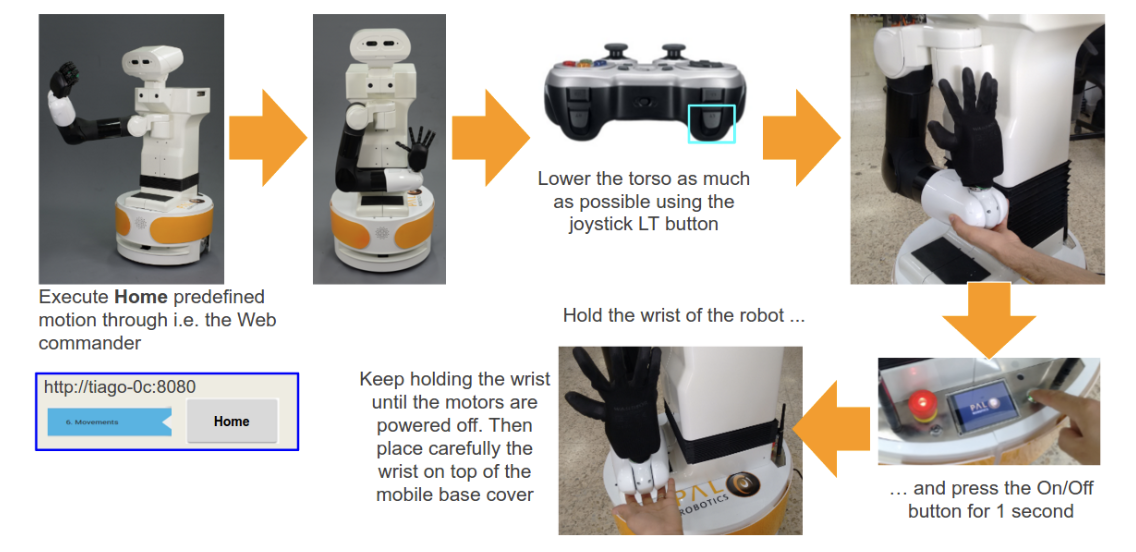

In order to safely shut down the robot follow the procedure shown in figure below must be followed.

_images/shutting_down_single.png

Figure: Shutdown procedure


Press the electric switch so that its red light turns off in case you are not using the robot for several days or when transporting it to another location.

Charging TIAGo

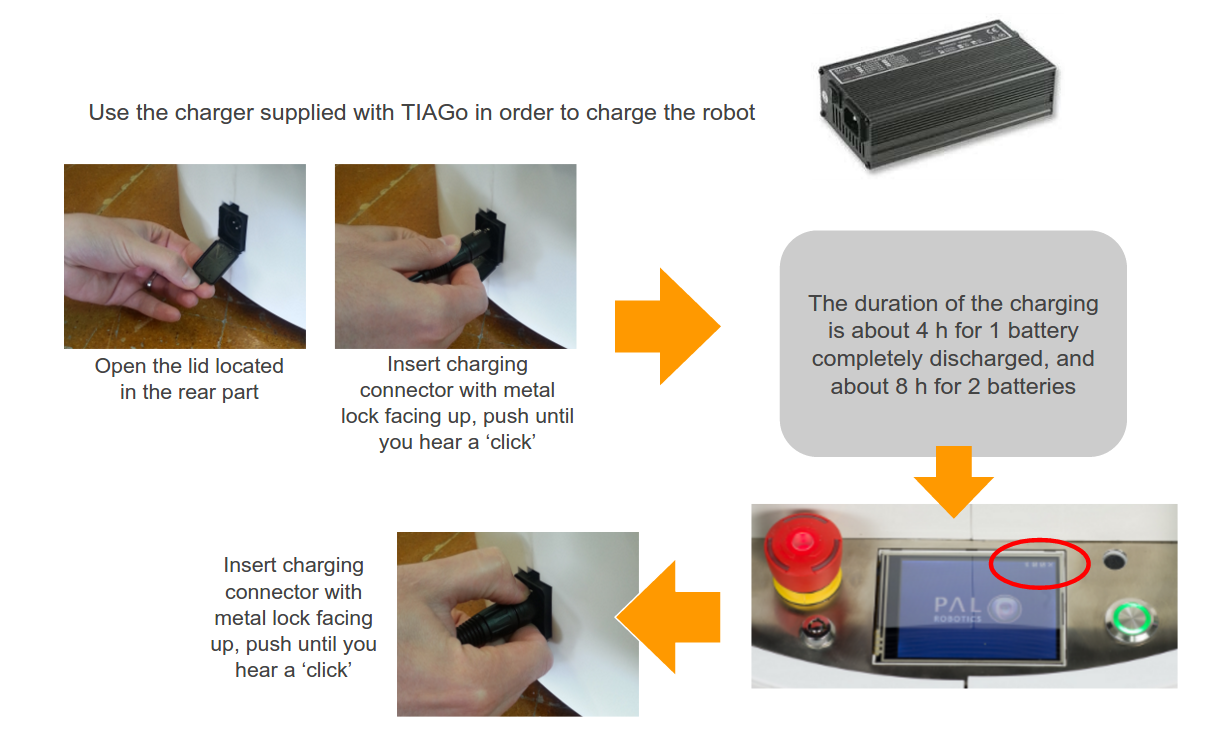

In order to charge TIAGo the procedure shown in figure below must be followed.

_images/charging_procedure.png

Figure: Charging procedure
